ATR8300-Raman Microscope(Mapping)
KW: Fully-automated, Mapping
Detail

Description:

Optosky ATR8300 Raman microscope combines benefits of microscope and Raman spectrometer. It becomes possible to see macro or micro areas of samples on the computer screen with just a single mouse click. When accurate positioning is visualized, the observer can detect Raman signals under various surface conditions, and synchronized Mapping can be displayed intuitively on the screen at one click operation. As a result, it provides great convenience to detect micro or macro areas of samples. Combine unique patented conjugate focusing(true confocal) system with accurate image processing algorithm, and it enables a very small sample areas to be analyzed, as well as it requires minimal operator training and maintenance, yet resulting in uniform result not just spectra.

ATR8300 is equipped with tailor-made objective, and laser spot on the sample becomes very close to diffraction limit, then focal information can be displayed in accurate and intuitive on the screen with 3-megapixel camera. This configuration improves Raman spectral quality for overcoming the limitations of Raman systems where the focal plane for Raman signal collection is slightly above or below the imaging plane.

ATR8300 works very stable with no moving components of optical path switch, hence it avoids loss off optical path while imaging formed, and it gains optimized signal for separating imaging formed from Raman signal collection.


Feature:

  • Full-automated Raman experiment, auto-focusing, auto-scan

  • Ultra-high sensitivity, SNR>6000:1

  • True confocal, accurate Raman mapping

  • Ultra-high spatial resolution

  • Unique software controlled to switch optical path

  • Ultra-high stability

  • Brand optical element, excellent performance

  • Fast positioning, quick  locate focal position

  • High quality objective, micro spot

  • 3-mega pixel camera, crisp clear images

  • Excitation wavelength(Optional): 532、785、830、1064

  • High performance spectrometer configured

  • USB2.0 in direct connect with PC

Application

  • Nano particles and new materials

  • Science research Institutions

  • Bioscience

  • Forensic identification

  • Material science

  • Medical immunology analysis

  • Agriculture and food safety

  • Waste water analysis

  • Gemstones and inorganic minerals identification

  • Environmental science



Fig. 1 ATR8300 Structure indication diagram


ATR8300 Raman Microscope Mapping

Excitation wavelength
785 nm  (532,830,1064 nm options)
Spectral resolution
4 cm-1
Spectral range
250-2700, 200-3800 cm-1
customer wavelengths available, down to 50 cm-1)
Maximum laser output
500mW (Max. 100mW for 532nm)
Spectral Stability
σ/μ < 0.5%  (COT 8 hours)
Thermal stability
Spectral shift 1 cm-1 (10-40 )
SN ratio
>5000:1
Detector
TE cooled, semiconductor laser, 2048*64 pixel, back-thinned, IR enhanced CCD
wavelength range detected
200nm-1100nm
Pixel size
14 μm * 14 μm
Dynamic range
13000:1
Laser center wavelength
785nm (+/-0.5nm)
Microscope camera
3-megapixel /5-megapixel camera
focusing
Conjugate focusing(True confocal)
Laser output
>550mW software adjustable
laser spot diameter
>1μm
Laser stability
σ/μ <±0.2%
Laser linewidth
0.08 nm
Connectivity
USB2.0
Electrical controlled X,Y axis 2D platform

moving range
5 X 5 cm
moving resolution
0.1μm
positioning accuracy
1μm
scanning speed

Z axisautomated focusing

focusing accuracy
0.2μm
focusing speed
≤10 s




2. Optical performance

2.1 Spectral exhibition

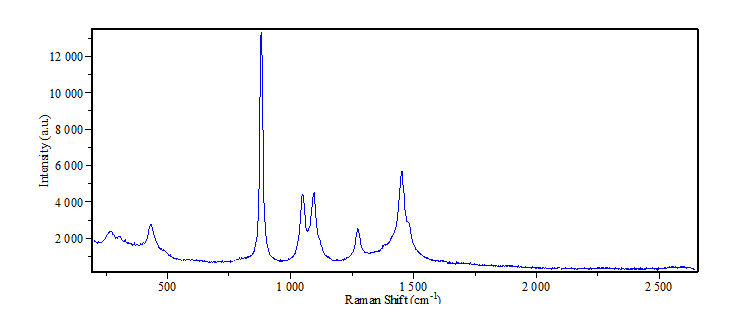

Fig. 2 ATR8300 collect acetonitrile spectra

Fig.2 ATR8300 Sers experiment 1Left picture is sample, and right picture is Sers Raman spectra


ATR8300 Sers experiment 2left picture is sample, right picture is Sers Raman spectra

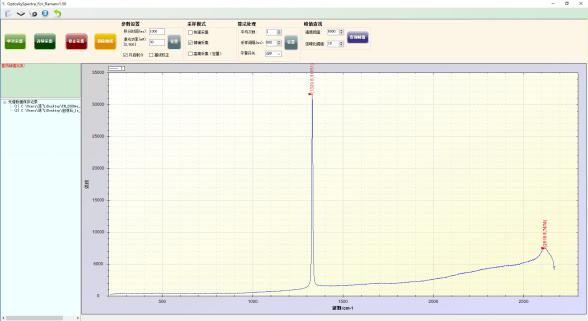

  • Fig 3 ATR8300 Measure Si Raman spectra500mW integration time: 1S

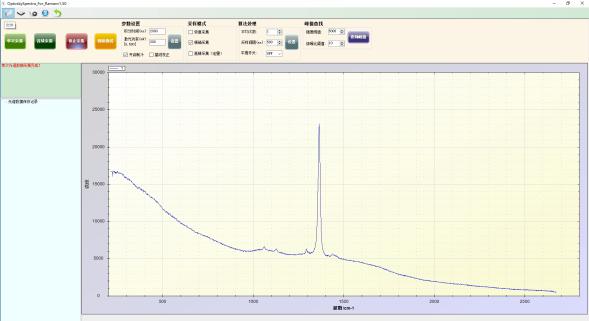

  • Fig 4 ATR8300 measure alcohol spctra500mW, integration time:1S
  • Fig 5 ATR8300 measure diamond Raman spectra30mW, integration time: 1S
  • Fig 6 ATR8300 measure boron carbidePNspectra200mW, integration time: 2S

  • 2.2 Raman resolution

    2.2.1Tylenol Raman spectra

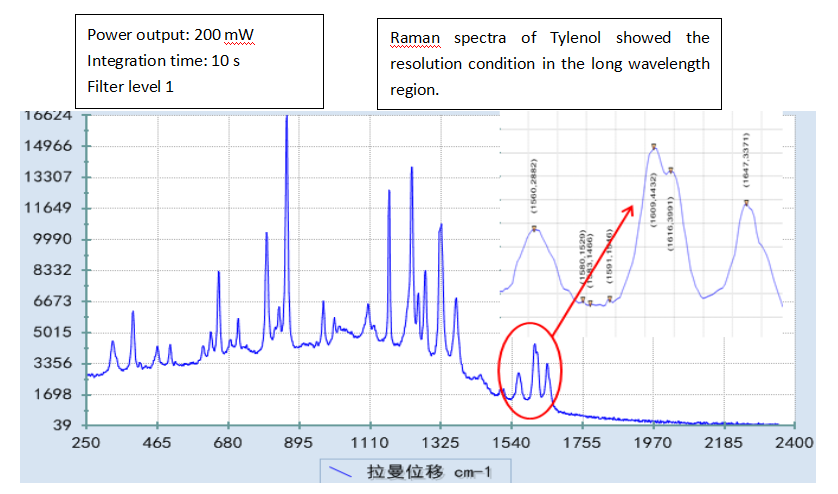

  • Fig 7 Tylenol spectra shows clear 1610/1615 cm-1vibration peak
  • 2.2.2 Petrol Raman spectra

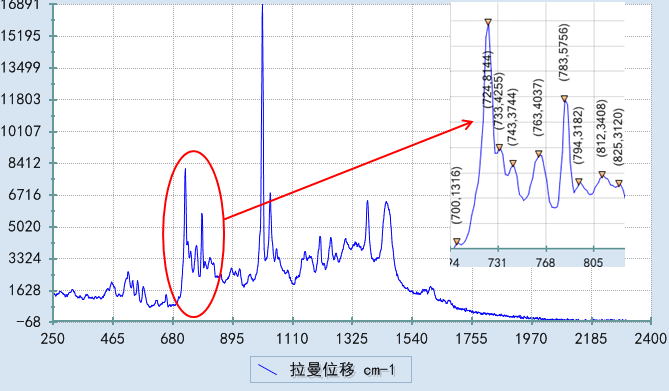

  • Fig 8 93# petrol Raman spectra, 723/732/742cm-1 spectral shift is clearly recognized
  • 3 Reliability

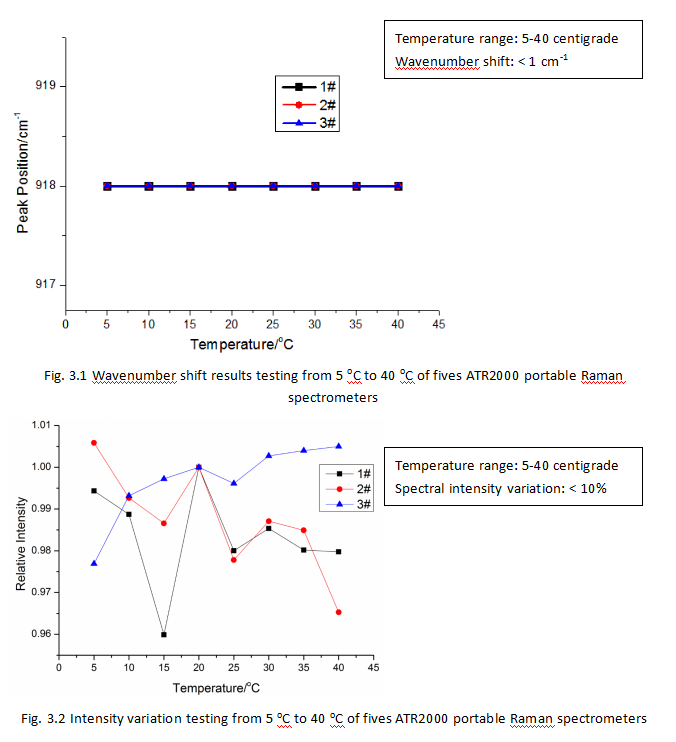

    Fig3.1, Fig3.2 temperature stability is measured by ATR8300, keep stable above an hour for each temperature node ranging between 5-40. Sample measured is acetonitrile, wavenumbers shift1cm-1Fig 3.1, peak top intensity change < 10%Fig 3.2


    4Order guide


    PN
    Wavelength
    /nm
    Power /mW
    Wavenumber range/cm-1
    Resolution/cm-1
    ATR8300-473
    473
    100
    150-4000
    7
    ATR8300-532
    532
    100
    150-4000
    7
    ATR8300-785-27
    785
    600
    250-2700
    5
    ATR8300-785-40


    150-4000
    6
    ATR8300-830
    830
    600
    150-4000
    7
    ATR8300-1064
    1064
    600
    150-4000
    10
    Available in custom wavelength






    Details



  • Fig 9 branded high stable microscope platform; XYZ-axis precision adjustable; Adjustable knob work smooth, weight up to 5.6 Kg, very stable.
  • Fig 10 Raman signal high transmission objective, confocal distance length up to 8nm
  • Fig 11 Power button, button on/off as many as1,000,000 times, high strength laser cable, signal cable is very strong, and laser indicator can intuitively display operating status.
  •

  • Fig 12 Simple interface: Raman microscope: power socket +USB2.0 connector

  • 6. Successful customers
