ATR8200-(Autofocus)Raman Microscope
Share to:
ATR8200-(Autofocus)Raman Microscope
KW: High sensitivity
Detail

ATR8200 combines the advantages of themicroscope and the Raman spectrometer. Unique conjugate focusing system makesaccurate focusing possible.

The ATR8200 is equipped with a special lensdesigned for the Raman system, which makes the laser light spot close to thediffraction limit, and the focus information is displayed accurately anddirectly on the computer through the 5 million cameras. Overcomes the problemof collecting Raman's signal in the ordinary Raman system slightly higher orlower than the actual optimal focal plane, thus improving the spectral quality.

ATR8200 unique software optical path switchingpart perfectly solves the loss of camera imaging time road and realizes theseparation of camera imaging and Raman signal collection, thus obtaining theoptimal strength.

Meanwhile ATR8200 used specifically forhigh-performance Raman micro Raman system optimization, sensitivity,signal-to-noise ratio, stability, etc., are the industry leading level, providestrong guarantee for Raman study.

Feature:

True focus, guaranteed more accurate Ramanimage

Ultra-high spatial resolution

Unique software control switching path

Super high stability

Quickly locate and quickly locate the focusposition

High quality objective lens, spot micronscale

5 million cameras, accurate image

Laser wavelength can be selected from 532,785 and 1064 nm

Equipped with a high performancespectrometer

The usb 2.0/LAN interface is directlyconnected to the computer

Application:

Biological sciences

Forensic analysis

Material science

Medical immunoassay

Agricultural and food safety

Water pollution analysis

Gemstone

Environmental science




Fig. 1 ATR8200 Structure indication diagram





  • ATR8200 Automated focusing Raman Microscope


  • Spectral resolution
  • 3 cm-1
  • Spectral range
  • 200-3800250-2700 cmOther wave ranges can be customized to a minimum of 50cm-1)
  • Spectral stability
  • σ/μ < 0.5% (COT 8 hours)
  • Temperature stability
  • Spectral shift≤1cm-1(10-40 )
  • SNR
  • >5000:1
  • Detector
  • TEC refrigeration 2048 pixel CCD
  • Wavelength range
  • 200nm-1100nm
  • Pixel size
  • 14μm*500μm
  • Detector dynamic range
  • 10000:1
  • Laser central wavelength
  • 785nm (+/-1nm)
5 megapixel industrial camera
3 megapixel or 5 megapixel industrial camera
  • Focus mode
  • Conjugate focus
laser bandwidth
Laser bandwidth
  • Laser beam diameter
  • >1μm
  • Laser stability
  • σ/μ <±0.2%
  • Laser bandwidth
  • 0.1 nm
  • Communication mode
  • USB2.0



2. Optical performance

2.1 Spectral exhibition


Fig. 2 ATR8300 collect acetonitrile spectra

Fig.2 ATR8200 Sers experiment 1Left picture is sample, and right picture is Sers Raman spectra

ATR8200 Sers experiment 2left picture is sample, right picture is Sers Raman spectra

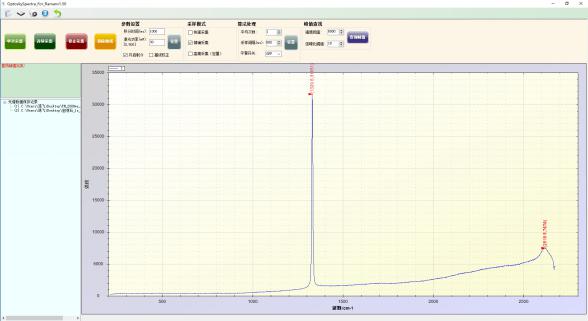

  • Fig 3 ATR8200 Measure Si Raman spectra500mW integration time: 1S

  • Fig 4 ATR8200 measure alcohol spctra500mW, integration time:1S

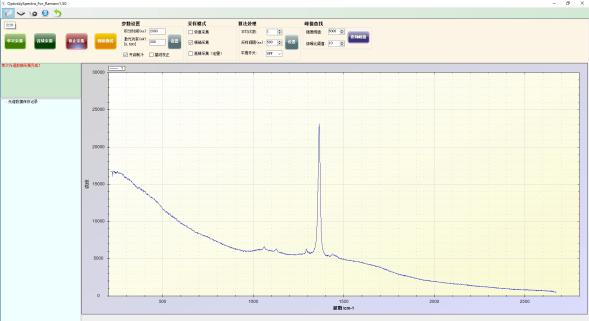

  • Fig 5 ATR8200 measure diamond Raman spectra30mW, integration time: 1S
  • Fig 6 ATR8300 measure boron carbidePNspectra200mW, integration time: 2S

  • 2.2 Raman resolution

    2.2.1Tylenol Raman spectra

  • Fig 7 Tylenol spectra shows clear 1610/1615 cm-1vibration peak
  • 2.2.2 Petrol Raman spectra

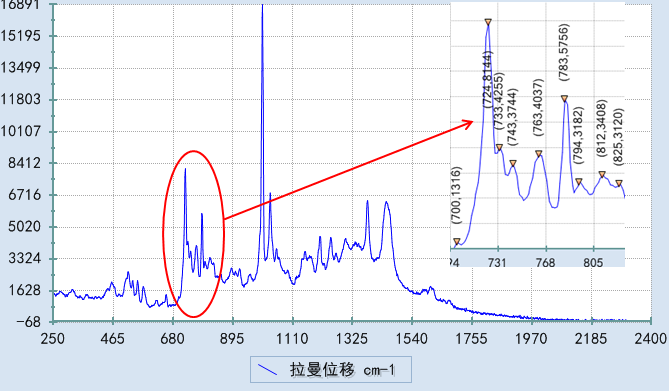

  • Fig 8 93# petrol Raman spectra, 723/732/742cm-1 spectral shift is clearly recognized
  • 3Reliability

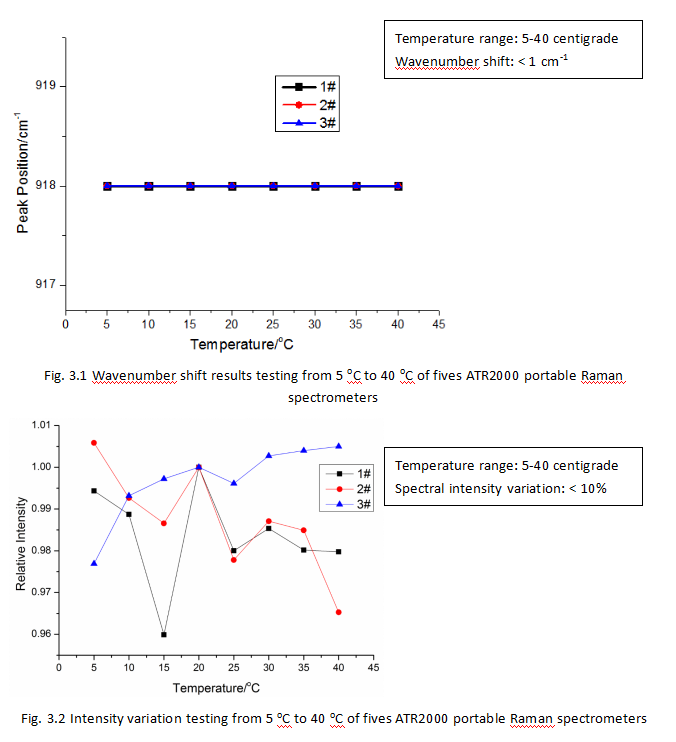

    Fig3.1, Fig3.2 temperature stability is measured by ATR8300, keep stable above an hour for each temperature node ranging between 5-40. Sample measured is acetonitrile, wavenumbers shift1cm-1Fig 3.1, peak top intensity change < 10%Fig 3.2





    4.Order guide

    Model  number

    Wave  lengthnm

    Laser  powermW

    ATR8200-473

    473

    100

    ATR8200-532

    532

    100

    ATR8200-785

    785

    600

    ATR8200-785-12

    1200

    ATR8200-830

    830

    600

    ATR8200-1064

    1064

    600

    Other wavelengths can be customized







    Details

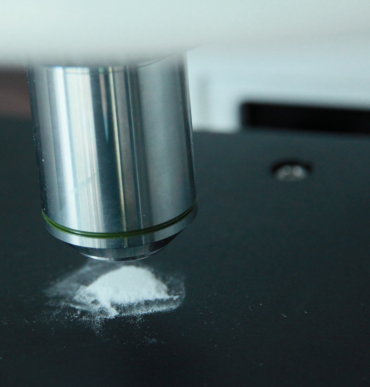

  • Fig 9 branded high stable microscope platform; XYZ-axis precision adjustable; Adjustable knob work smooth, weight up to 5.6 Kg, very stable.
  • Fig 10 Raman signal high transmission objective, confocal distance length up to 8nm

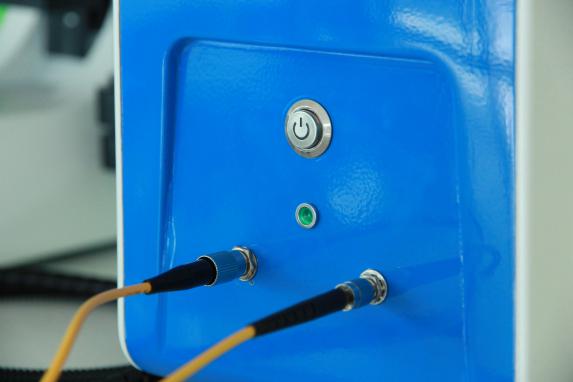

  • Fig 11 Power button, button on/off as many as1,000,000 times, high strength laser cable, signal cable is very strong, and laser indicator can intuitively display operating status.
  •

  • Fig 12 Simple interface: Raman microscope: power socket +USB2.0 connector

  • 6. Successful customers






    更多 ……








































Fig. 1 ATR8200 Structure indication diagram









  • ATR8200 Automated focusing Raman Microscope

  • Spectral resolution
  • 3 cm-1
  • Spectral range
  • 200-3800250-2700 cmOther wave ranges can be customized to a minimum of 50cm-1)
  • Spectral stability
  • σ/μ

    < 0.5%
    (COT 8 hours)
  • Temperature stability
  • Spectral shift≤1
    cm
    -1(10-40
    )
  • SNR
  • >5000:1
  • Detector
  • TEC refrigeration 2048 pixel CCD
  • Wavelength range
  • 200nm-1100nm
  • Pixel size
  • 14μm*500μm
  • Detector dynamic range
  • 10000:1
  • Laser central wavelength
  • 785nm (+/-1nm)
5 megapixel industrial camera
3 megapixel or 5 megapixel industrial camera
  • Focus mode
  • Conjugate focus
laser bandwidth
Laser bandwidth
  • Laser beam diameter
  • >1μm
  • Laser stability
  • σ/μ <±0.2%
  • Laser bandwidth
  • 0.1 nm
  • Communication mode
  • USB2.0



2. Optical performance

2.1 Spectral exhibition


Fig. 2 ATR8200 collect acetonitrile spectra

Fig.2 ATR8200 Sers experiment 1Left picture is sample, and right picture is Sers Raman spectra

ATR8200 Sers experiment 2left picture is sample, right picture is Sers Raman spectra

  • Fig 3 ATR8200 Measure Si Raman spectra500mW integration time: 1S

  • Fig 4 ATR8200 measure alcohol spctra500mW, integration time:1S
  • Fig 5 ATR8200 measure diamond Raman spectra30mW, integration time: 1S
  • Fig 6 ATR8200 measure boron carbidePNspectra200mW, integration time: 2S

  • 2.2 Raman resolution

    2.2.1Tylenol Raman spectra

  • Fig 7 Tylenol spectra shows clear 1610/1615 cm-1vibration peak
  • 2.2.2 Petrol Raman spectra




  • Fig 8 93# petrol Raman spectra, 723/732/742cm-1 spectral shift is clearly recognized
  • 3Reliability

    Fig3.1, Fig3.2 temperature stability is measured by ATR8300, keep stable above an hour for each temperature node ranging between 5-40. Sample measured is acetonitrile, wavenumbers shift1cm-1Fig 3.1, peak top intensity change < 10%Fig 3.2





    4Order guide



  • Model number

  • Wave lengthnm

  • Laser powermW

  • ATR8200-473

  • 473

  • 100

  • ATR8200-532

  • 532

  • 100

  • ATR8200-785

  • 785

  • 600

  • ATR8200-785-12


  • 1200

  • ATR8200-830

  • 830

  • 600

  • ATR8200-1064

  • 1064

  • 600

  • Available in custom wavelength




  • Details



  • Fig 9 branded high stable microscope platform; XYZ-axis precision adjustable; Adjustable knob work smooth, weight up to 5.6 Kg, very stable.
  • Fig 10 Raman signal high transmission objective, confocal distance length up to 8nm
  • Fig 11 Power button, button on/off as many as1,000,000 times, high strength laser cable, signal cable is very strong, and laser indicator can intuitively display operating status.
  •

  • Fig 12 Simple interface: Raman microscope: power socket +USB2.0 connector

  • 6. Successful customers






    更多 ……
