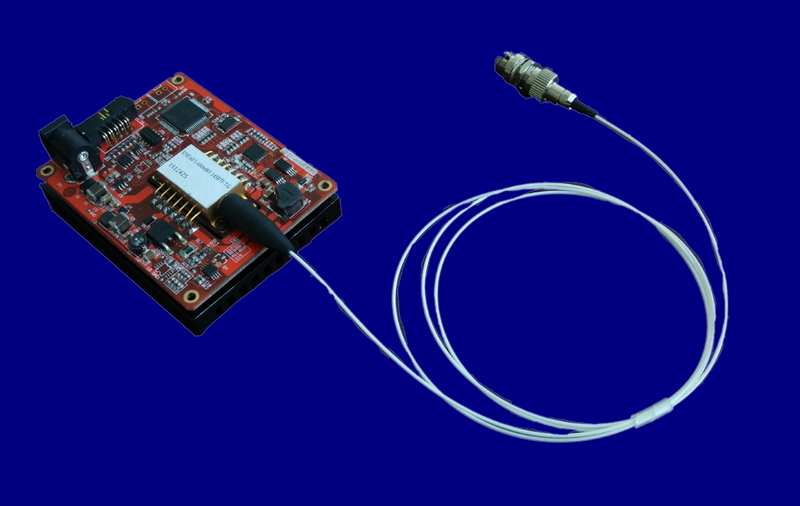

ATR20201_超薄型拉曼激光器模块
|
产品详情

GENERAL DESCRIPTION

ATR20201 785nm narrow line laser is characteristic by its highreliability and ultra-narrow linewidth. ATR20201 operates with a single 5V power supply and can output 500 mW laser power.When ATR20201 is used in Ramanspectrometer, it will help to obtain high spectral stability and highresolution. It can be controlled through the TTL interface by the offered pinout definition and the communication protocol. The output laser power canbe changed continuously by changing the LD working current with the commands.

APPLICATIONS

  • Raman spectrometer

  • Bio-medical

  • Sensing

FEATURES

lMaxoutput power: 500 mW

lCenterwavelength: 785±0.5 nm

ADVANTAGE

  • Narrowline

  • Highstability

  • Low powerconsumption

  • Highreliability




Figure3 the relationship between output laser power and the operationcurrent

1    Reliabilityand Stability

Figure 4showing thestability times while open laser. The typical stabilization time is 5 seconds. Thisparameter affects the application directly in rapid detection.

Figure 5 showing the long term power stabilitytesting result of 5 samples, it indicated that the laser has a good stabilityin continuous work.

Figure 4 Power stabilitytesting results of 5 samples

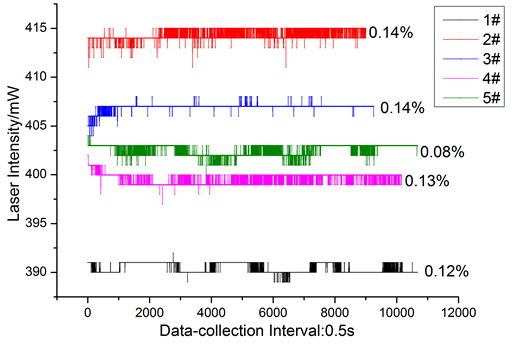

Figure 5 Long term stabilitytesting results of 5 samples

1       Application for Raman Spectrometer
