ATR20202-600mW 785nm拉曼窄线宽激光器
|
型号 : ATR20202
产品详情

GENERAL DESCRIPTION

  ATR20202 785nm narrow line laser is characteristic by its highreliability and ultra-narrow linewidth. ATR20202 operates with a single 5V power supply and can output 500 mW laser power.When ATR20202 is used in Ramanspectrometer, it will help to obtain high spectral stability and highresolution. It can be controlled through the TTL interface by the offered pinout definition and the communication protocol. The output laser power canbe changed continuously by changing the LD working current with the commands.

APPLICATIONS

  • Raman spectrometer

  • Bio-medical

  • Sensing

FEATURES

lMaxoutput power: 500 mW

lCenterwavelength: 785±0.5 nm

lLinewidth (FWHM): < 0.1 nm

lFiber:105/125μm, 0.22NA,FC/PC

lInterface:UART

lPowersupply: +5V/DC

ADVANTAGE

  • Narrowline

  • Highstability

  • Low powerconsumption

  • Highreliability


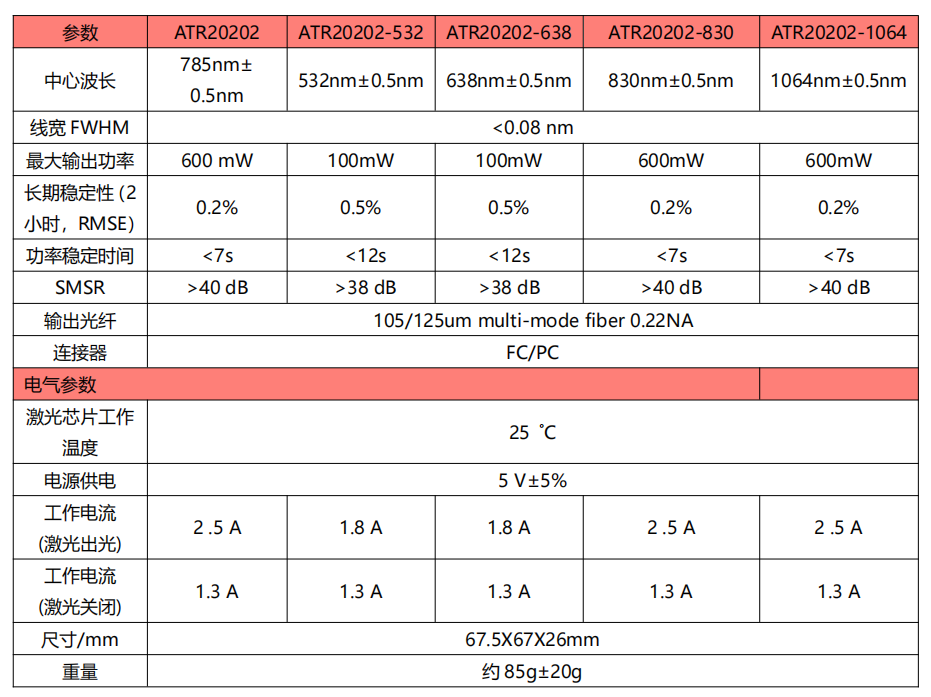

SPECIFICATIONS



1    LaserParameter

Ith    (A)

Max

Power (mW)

Max

Iop    (A)

%   Power   0.04   NA   (MIN 6%)

λc     (nm)

FWHM     (nm)

SMSR   (dB)TYP.

0.3

500

0.98

11

785±0.5

0.1

>40

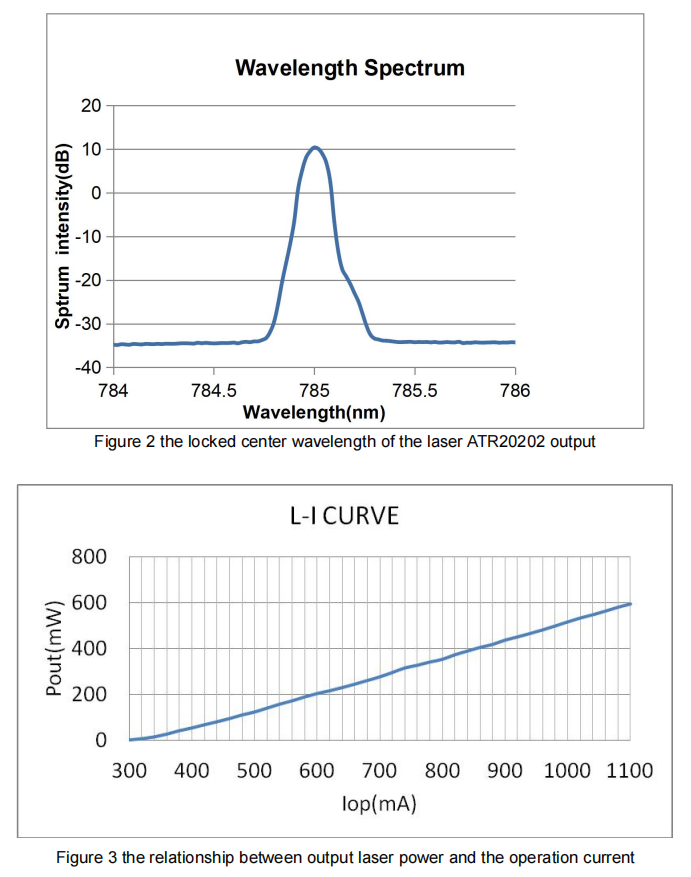

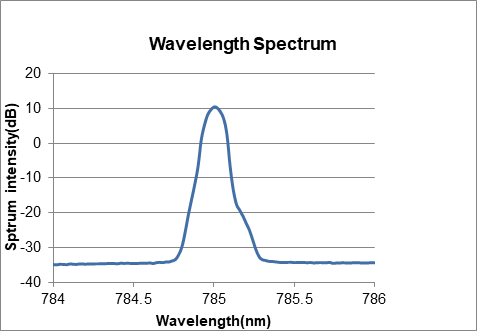

        Figure2 he locked center wavelength of the laser ATR20202 output

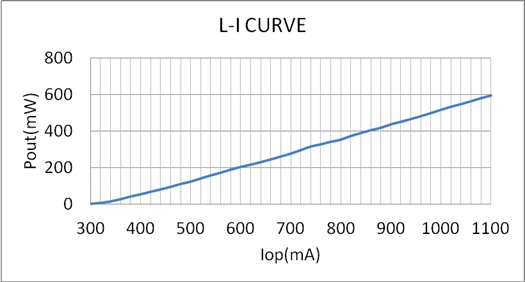

             Figure3 the relationship between output laser powerand the operation current


2    Reliabilityand Stability


  Figure 4showing thestability times while open laser. The typical stabilization time is 5 seconds. Thisparameter affects the application directly in rapid detection.

  Figure 5 showing the long term power stabilitytesting result of 5 samples, it indicated that the laser has a good stabilityin continuous work.



Figure 4 Power stabilitytesting results of 5 samples



Figure 5 Long term stabilitytesting results of 5 samples

3    ElectricalPin-out


The module is equipped with a 10-pin(male) connector (2x5, 2 mm pitch) The Pin-out is outlined in Table below.Refer to the Figure 6 for the pin numbering.

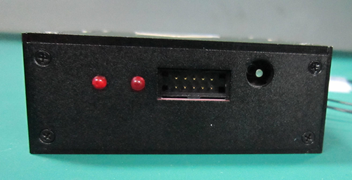

             Figure 6 PIN drawing



Table 1 Pin-Out Function Descriptions

Pin

Description

INPUT/OUTPUT

Function Description

1

NC


Not   used

2

NC


Not   used

3

NC


Not   used

4

NC


Not   used

5

TX

Output

RS-232   serial input signal,3.3V TTL levels

6

RX

Input

RS-232   serial output signal ,3.3 V TTL levels

7

GND

Input/output

Ground

8

GND

Input/output

Ground

9

VCC

Output

5V power supply

10

VCC

Output

5V power supply


4    CommunicationProtocol


1.1   SerialInterface

The RS232 serial interface is at 3.3V TTL levels, and the default setting asbelow:


Table 2 Defaults UART parameters

Parameter

Default

Data rate (baud)

115200

Data bits

8

Parity

None

Stop bits

1

Flow control

None


a)    RS232Protocol and Command Format

Host send

0,1

23

4

5…N-1

N

Head

(2bytes)

Length

(2   bytes)

Command   ID

(1byte)

Data

Checksum

(1byte)

LD module response:

01

23

4

5…N-1

N

Head

(2bytes)

Length

(2bytes)

Command   ID

(1byte)

Data

Checksum

(1byte)

Description

All data sent to/fromthe spectrometer is encoded in Hexadecimal format.

Head 2bytes, used to locate the start of a communication packet, fixed to”0xAA 0x55”.

Length2 bytes, number of bytes from “Length” to“Checksum”.

Example: the command length is 1000 bytes,The length =0x03E8.

The MSB byte is 0x03, and the LSB byte is 0xE8.

Command ID: 1byte.

Data   TheData is determined according to the command, and the Data can be empty.

Checksum1byte, accumulation of all bytes from“Length” to “Data”.

i.e Checksum = (Length + Message ID +Data)&0xff.

Example

Command Get spectrum version: (all data isHexadecimal data)

Host sendAA 55 00 04 02 06

Note:

Head:   AA 55

Length: 00 04

Command ID: 02

Data: Blank

Checksum: 06 = 0x00+0x04+0x02.

LD moduleresponseAA55 00 0A 02 30 30 30 30 30 30 2C

B)    Commandsoverview

No.

Description

Command ID

Host Send

LD module Response

1

Get spectrum firmware   version

0X02

<Head><Length><Command   ID><Checksum>

<Head><Length><Command   ID><Data><Checksum>

Data6 bytes, Hardware version (3bytes) + software version (3bytes), encoded   in US ASCII.

2

Get manufacture name

0X09

<Head><Length><Command   ID><Checksum>

<Head><Length><Command   ID><Data><Checksum>

Data: 6 bytes, encoded in US ASCII.

i.e OPTOSKY

3

Set LD Current

0X20

<Head><Length><Command   ID><data><Checksum>

Data: 2bytes, encoded in HEX.

Range from (0x0000~0x03E8mA),the units is mA.

<Head><Length><Command   ID><Data><Checksum>

Data: 0x00 -- success

     0x01 -- fail


5    MechanicalDrawings

6      Application for Raman Spectrometer
